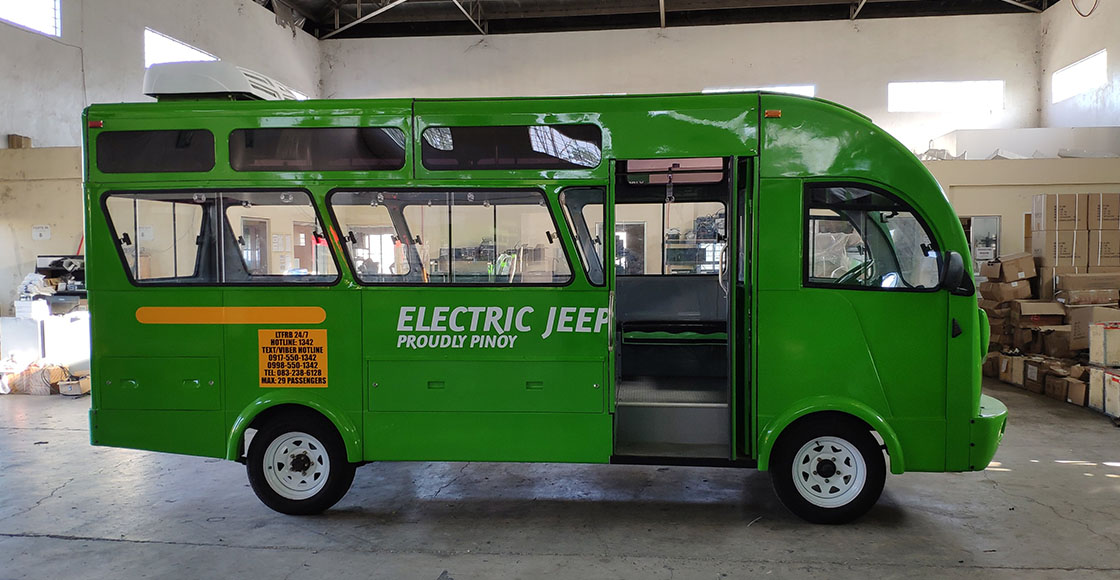

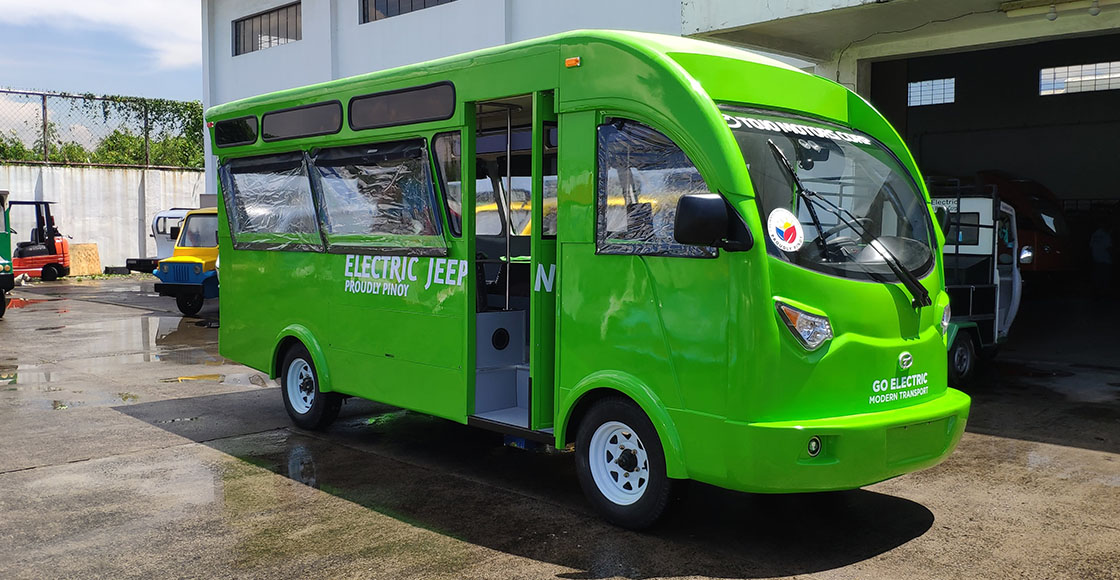

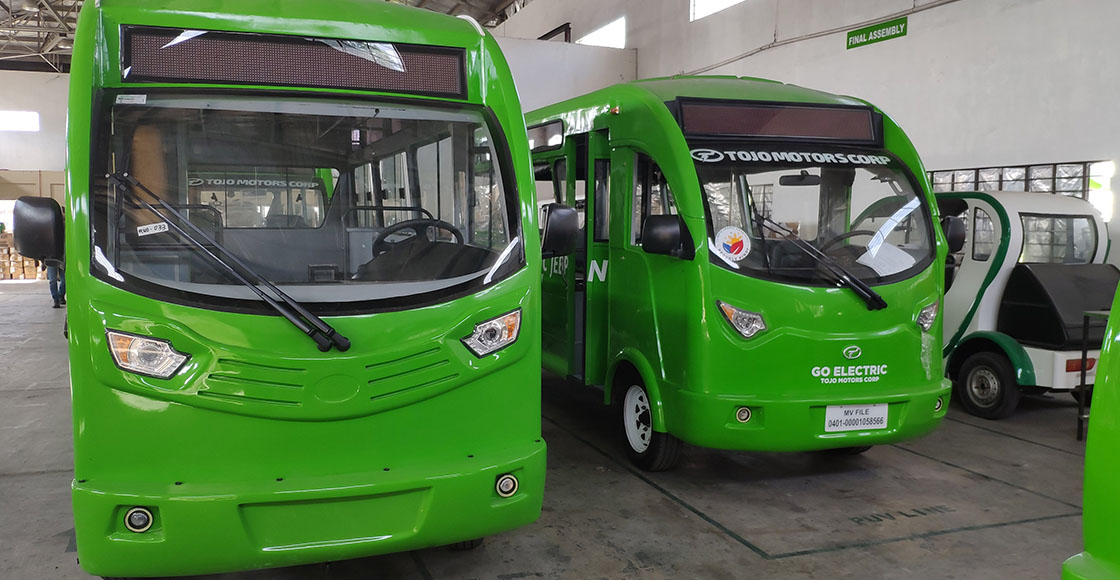

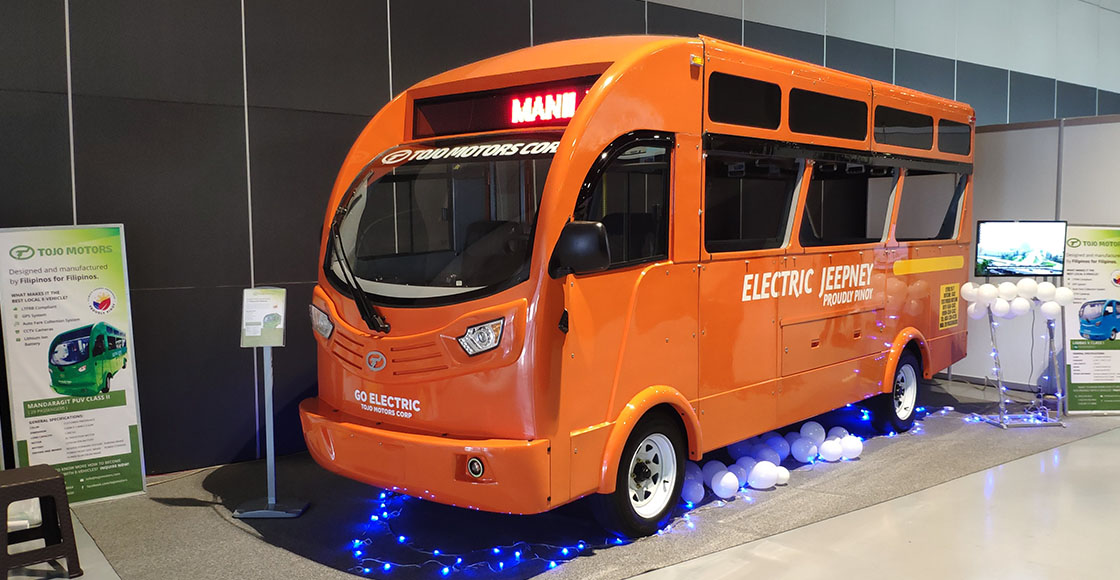

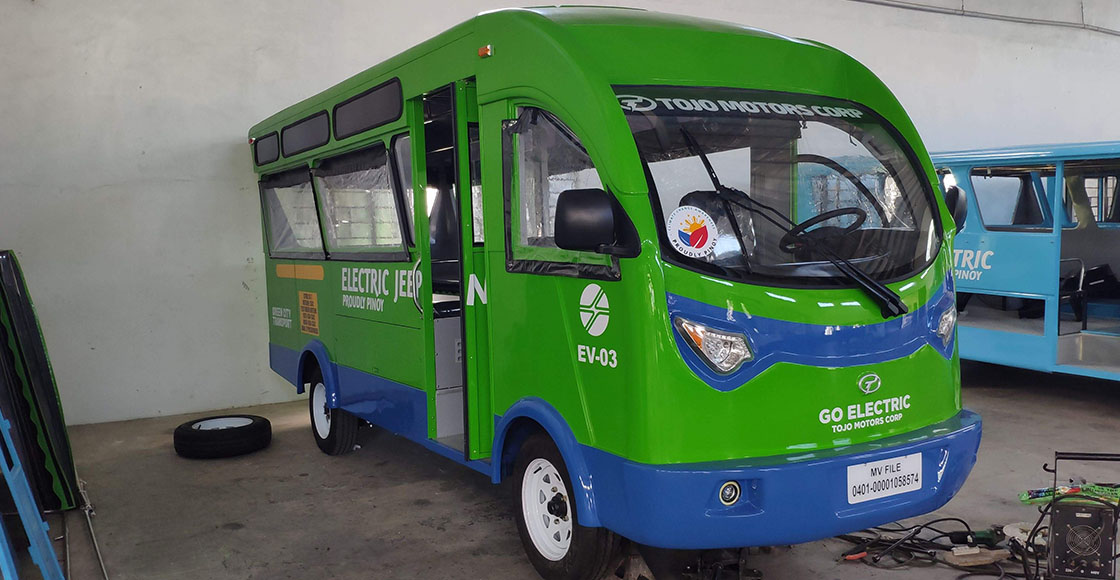

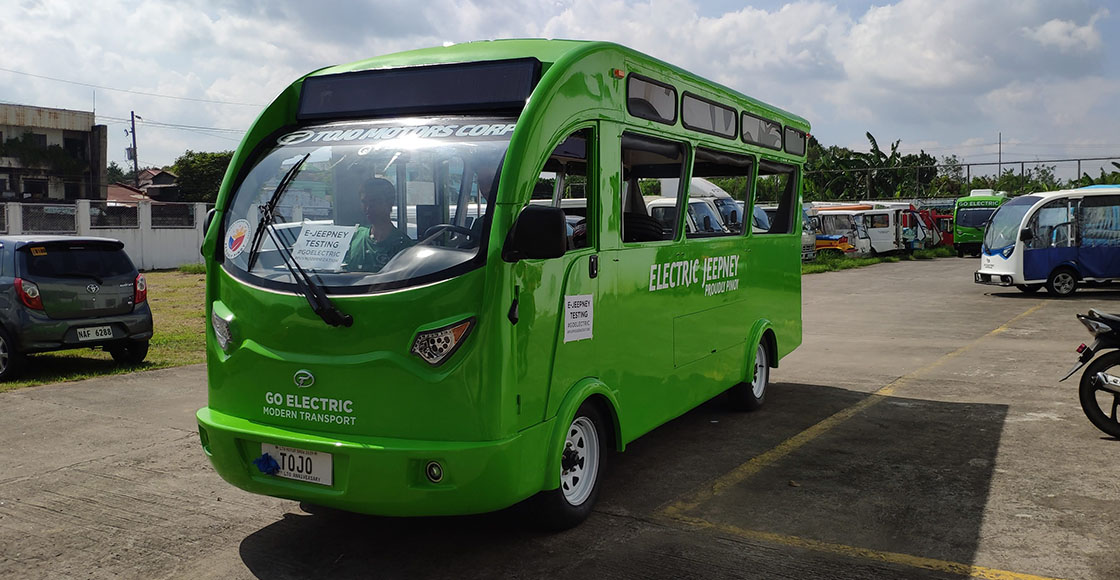

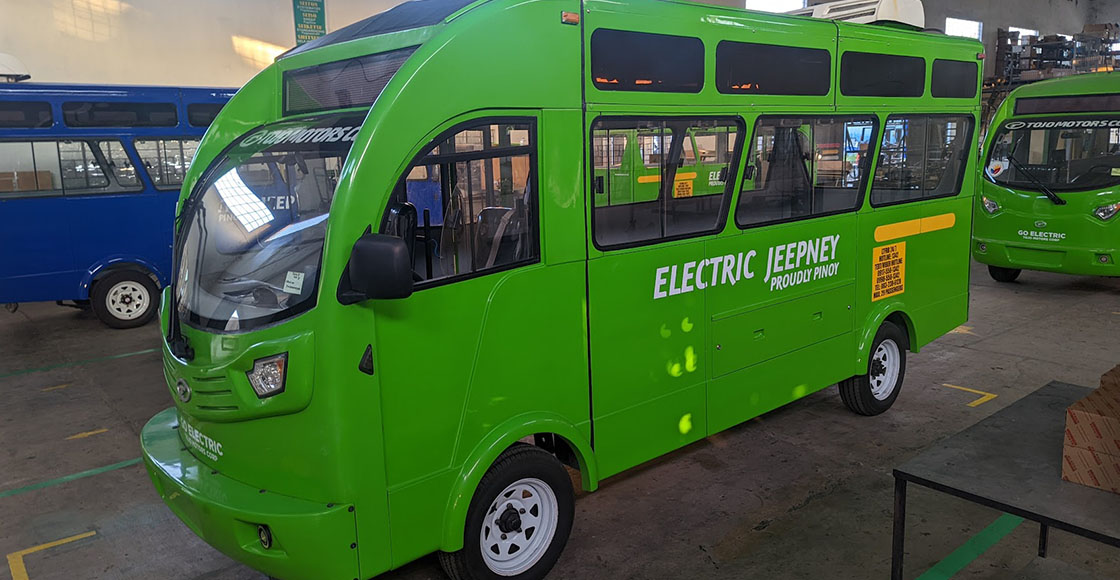

MANDARAGIT PUV CLASS 2
The Leader of the Pack
The MANDARAGIT model is the company’s flagship vehicle for the Class 2 category of the PUV Modernization Program. It comes with a standard 15KW AC Induction Motor for a high power-low consumption system to make public commuting efficient and the drivers operating the vehicle with ease.
30 PAX CAPACITY
(20 seating + 10 standing)
15KW AC Induction Motor / Lithium Battery-Powered
PNS Certified
PUV Class 2 Category
Available in either Air-conditioned type or Non-A/C vehicle
FEATURES AND SPECIFICATIONS
FEATURE 1
This is a placeholder text sample. Please delete once correct copy is available.
FEATURE 2
This is a placeholder text sample. Please delete once correct copy is available.
FEATURE 3
This is a placeholder text sample. Please delete once correct copy is available.
| CATEGORY | SPECIFICATIONS |
| Powertrain System | 15 KW AC Induction Motor Direct drive single-speed transmission axle |
| Performance | 50KPH top speed 8° climb angle 60 kms minimum range; scalable to longer range 1,885 kg total load capacity |
| Battery | Lithium battery (locally assembled) 20 KwH battery pack system |
| Body and Chassis | 5600 mm x 1730 mm x 2510 mm (L x W x H) FRP and ABS composite body panels Ladder-type steel chassis with roll-cage frame design |
| Suspension and Brakes | Front and rear leaf spring system with shocks absorbers Hydraulic power brakes system Electronic power steering Front disc brake / Rear drum brake |
| Tyres | 195/70 R15C 5J x 15 |
| Passenger Capacity | 19 passengers seated + 1 driver 10 passengers standing |
| Add-ons | Modern PUV Standard Accessories: CCTV systems (interior + dashboard + rear camera) GPS system AFCS-ready system Raincover or sliding window option Driver-controlled passenger door system Electronic stepboard |
| Airconditioning System (for AC-type units) | 24VDC Aircon system unit 4-hours continuous running, separate battery source included |
