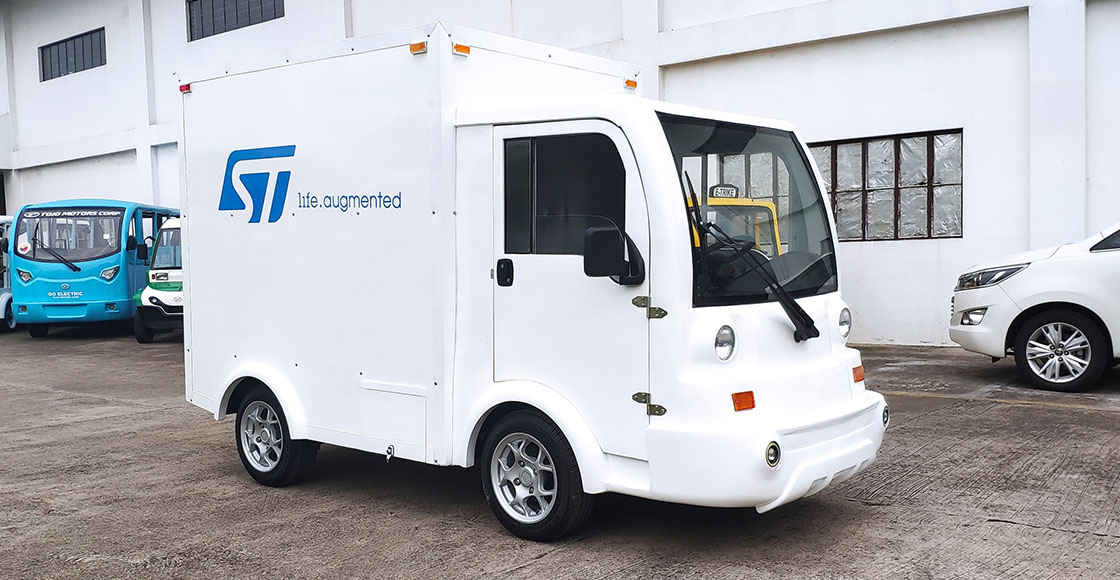

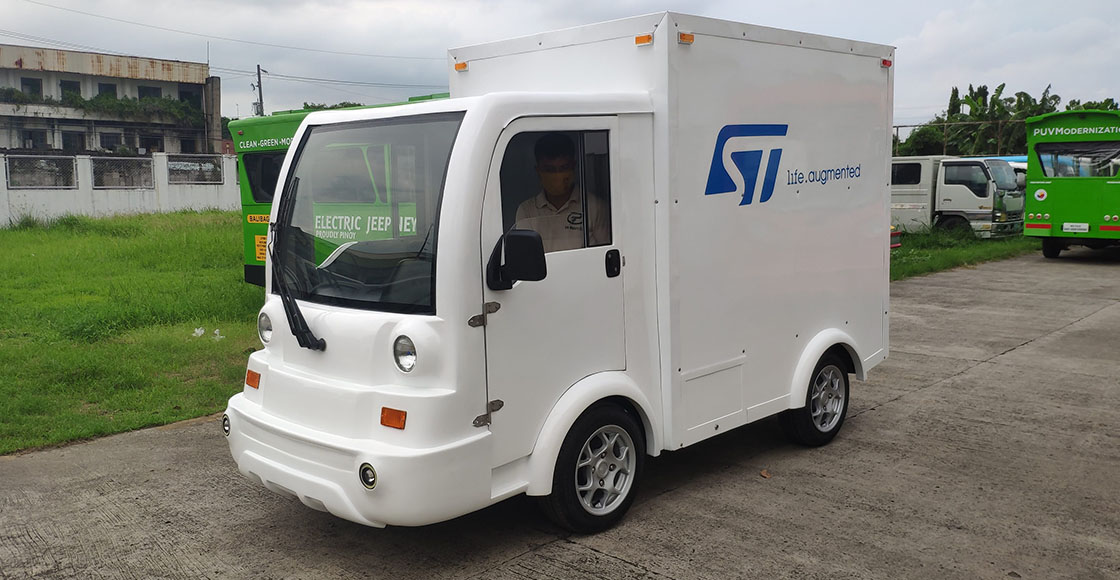

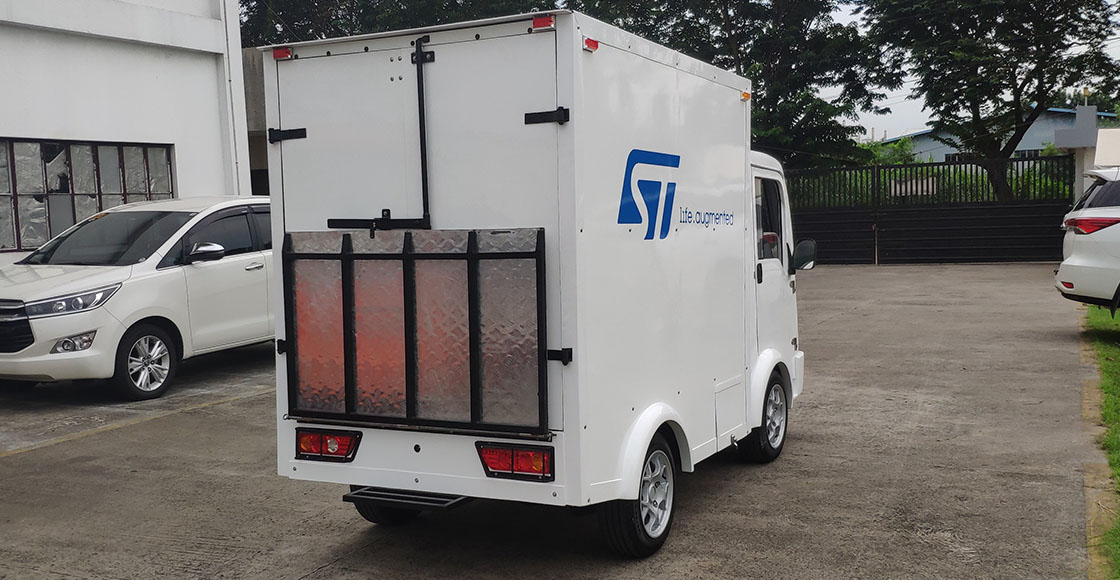

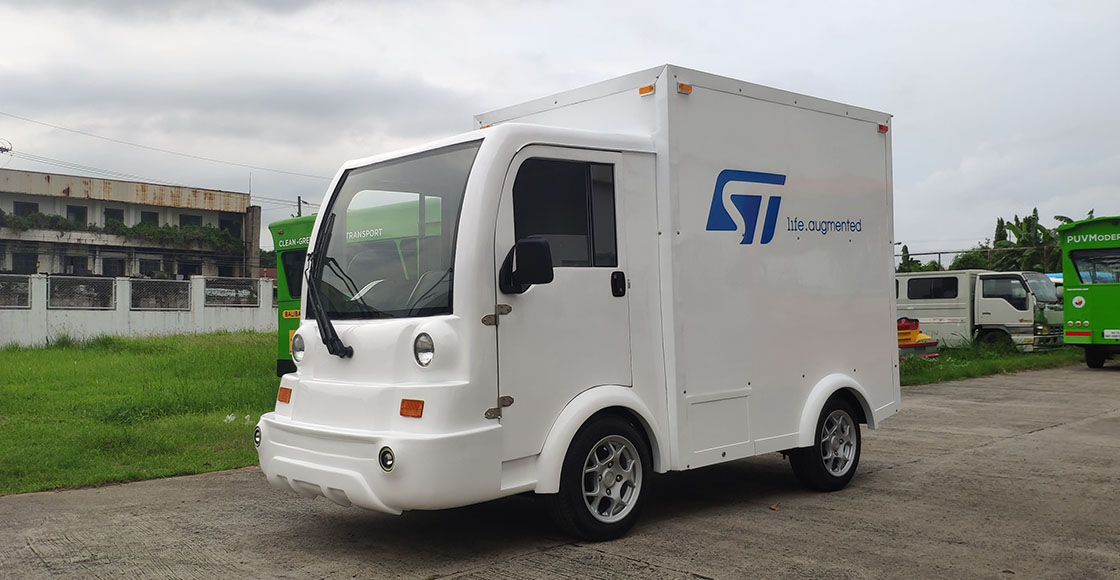

LIMBAS C600
Solution to Your Logistics Need
The LIMBAS C, or LIMBAS CARGO, is your cargo transport solution on electric drivetrain for industry use or defined route delivery. The LC-600 can carry up to 600kg as its standard delivery capacity, but can be upgraded to up to 1,200kg.
2 PASSENGER CAPACITY
7.5KW AC Induction Motor / Lithium Battery-Powered
Cargo Load Capacity:
standard at 600kg
GALLERY
FEATURES AND SPECIFICATIONS
FEATURE 1
This is a placeholder text sample. Please delete once correct copy is available.
FEATURE 2
This is a placeholder text sample. Please delete once correct copy is available.
FEATURE 3
This is a placeholder text sample. Please delete once correct copy is available.
| CATEGORY | SPECIFICATIONS |
| Powertrain System | 7.5 KW AC Induction Motor Direct drive single-speed transmission axle |
| Performance | 50KPH top speed 8° climb angle 50 kms minimum range; scalable to longer range 750 kg total load capacity |
| Battery | Lithium battery (locally assembled) 10 KwH battery pack system |
| Body and Chassis | 3650 mm x 1410 mm x 2140 mm (L x W x H) FRP and ABS composite body panels Ladder-type steel chassis with roll-cage frame design |
| Suspension and Brakes | Front and rear leaf spring system with shocks absorbers Hydraulic power brakes system |
| Tyres | 165/60 R13C 5J x 13 |
| Passenger Capacity | 1 passengers seated + 1 driver |
