LIMBAS C600

Solution to Your Logistics Need

The LIMBAS C, or LIMBAS CARGO, is your cargo transport solution on electric drivetrain for industry use or defined route delivery. The LC-600 can carry up to 600kg as its standard delivery capacity, but can be upgraded to up to 1,200kg.


2 PASSENGER CAPACITY


7.5KW AC Induction Motor / Lithium Battery-Powered


Cargo Load Capacity:
standard at 600kg

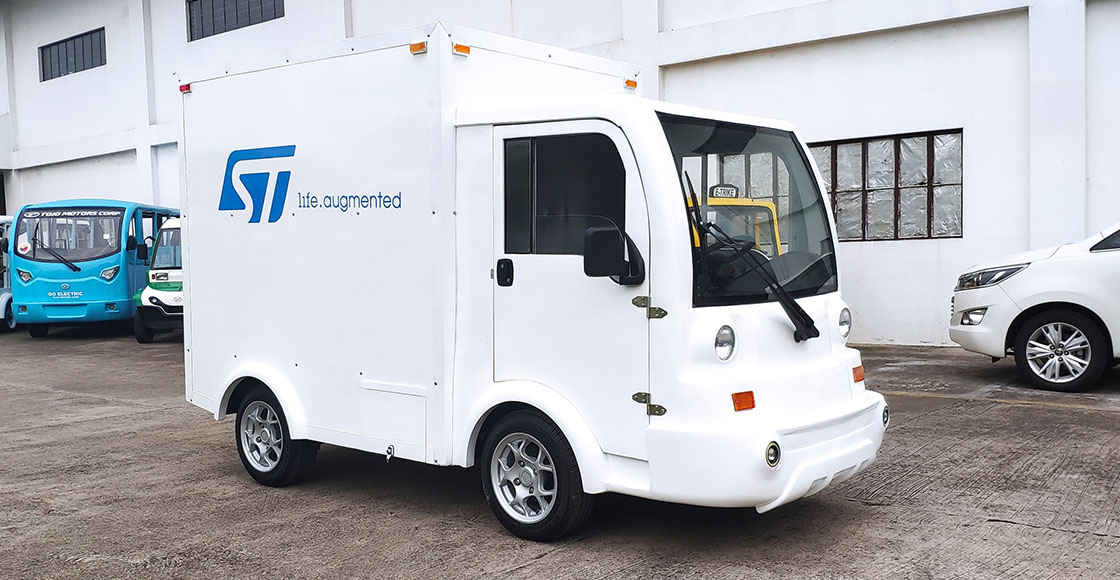

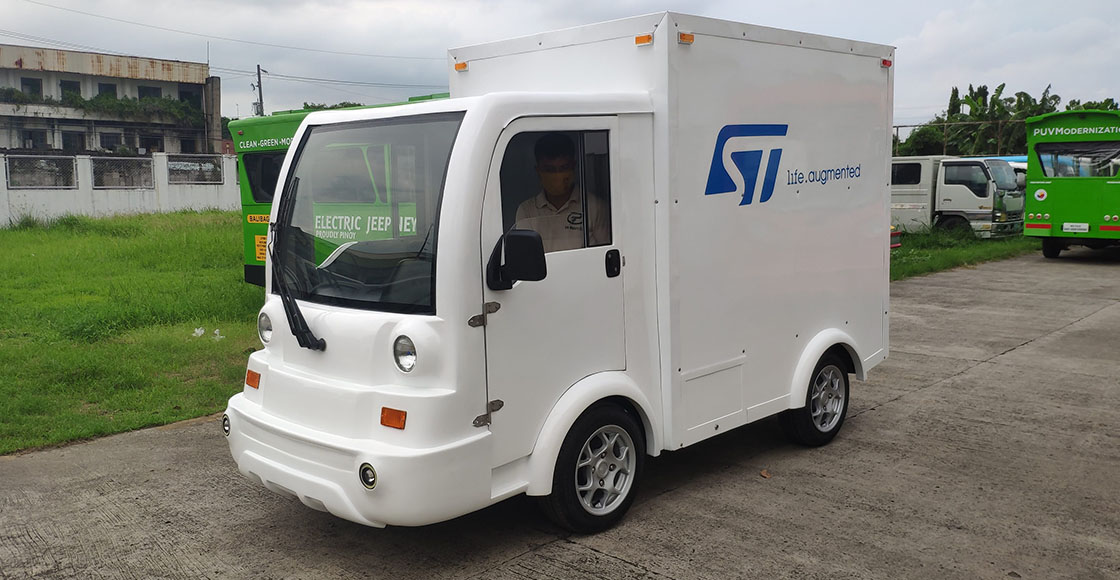

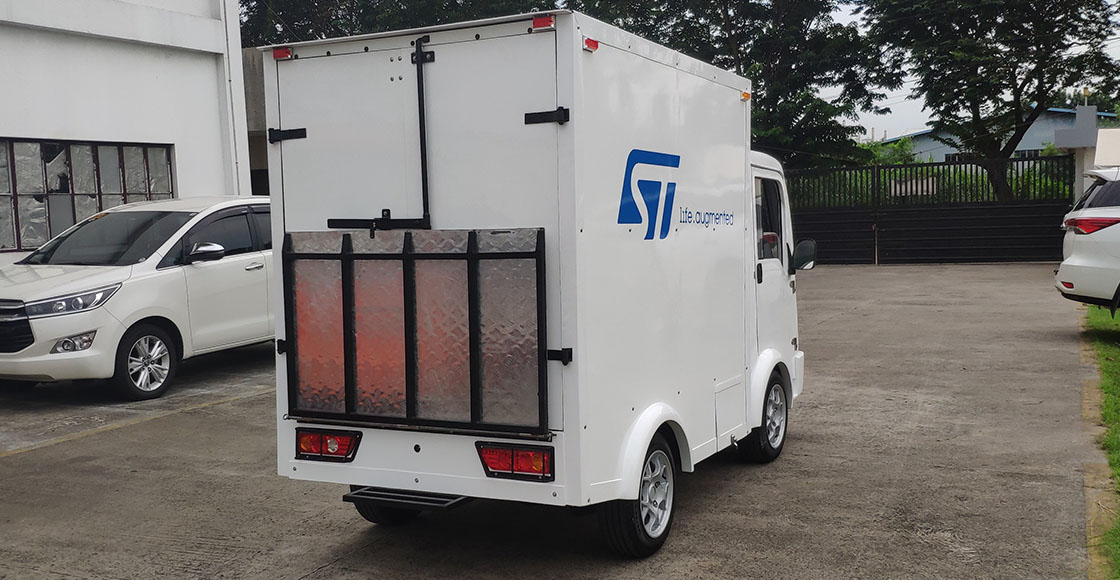

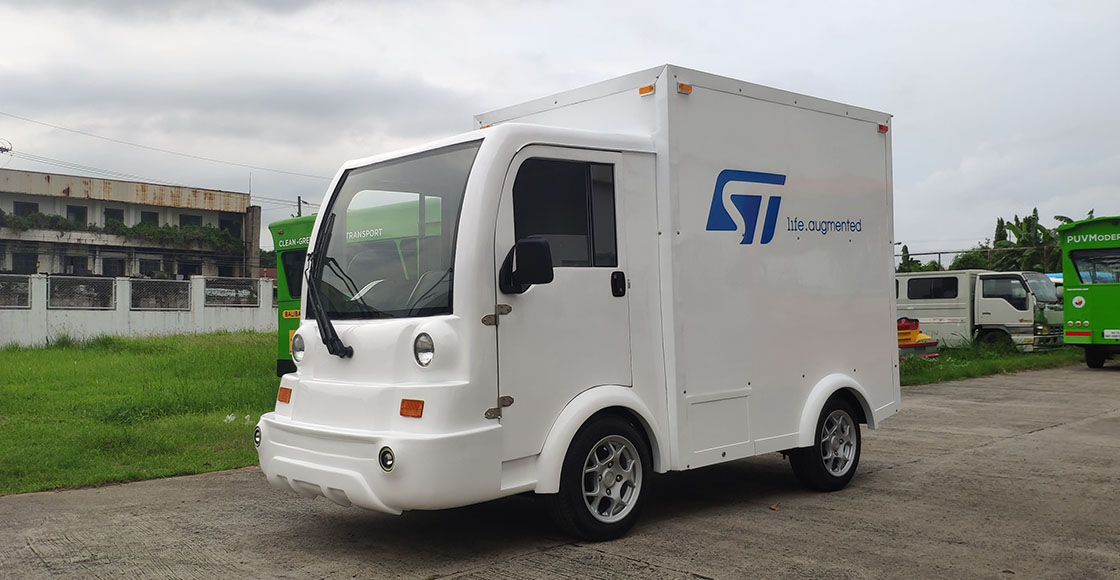

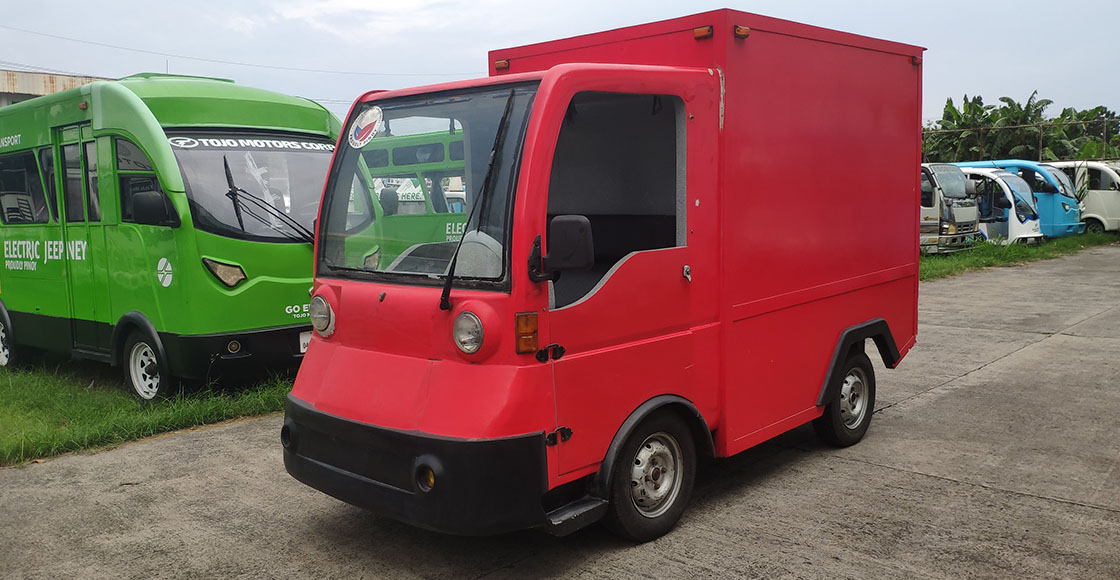

GALLERY

FEATURES AND SPECIFICATIONS

FEATURE 1

This is a placeholder text sample. Please delete once correct copy is available.

FEATURE 2

This is a placeholder text sample. Please delete once correct copy is available.

FEATURE 3

This is a placeholder text sample. Please delete once correct copy is available.

CATEGORYSPECIFICATIONS
Powertrain System7.5 KW AC Induction Motor
Direct drive single-speed transmission axle
Performance50KPH top speed
8° climb angle
50 kms default range
750 kg total load capacity
BatteryLithium battery (locally assembled)
10 KwH battery pack system
Body and Chassis3650 mm x 1410 mm x 2140 mm (L x W x H)
FRP and ABS composite body panels
Ladder-type steel chassis with roll-cage frame design
Suspension and BrakesFront and rear leaf spring system with shocks absorbers
Hydraulic power brakes system
Tyres165/60 R13C
5J x 13
Passenger Capacity1 passengers seated + 1 driver
