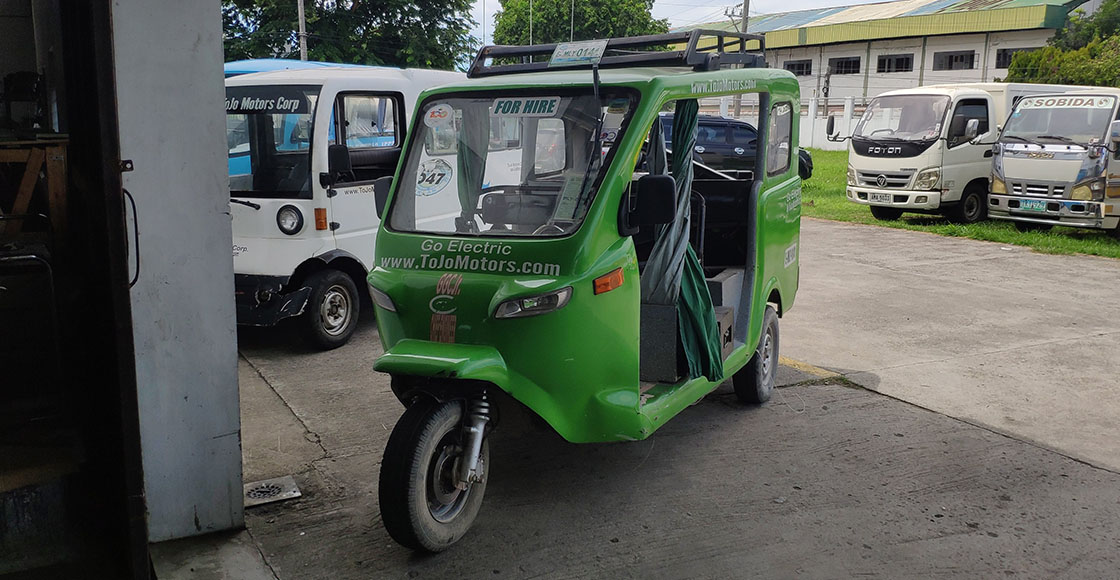

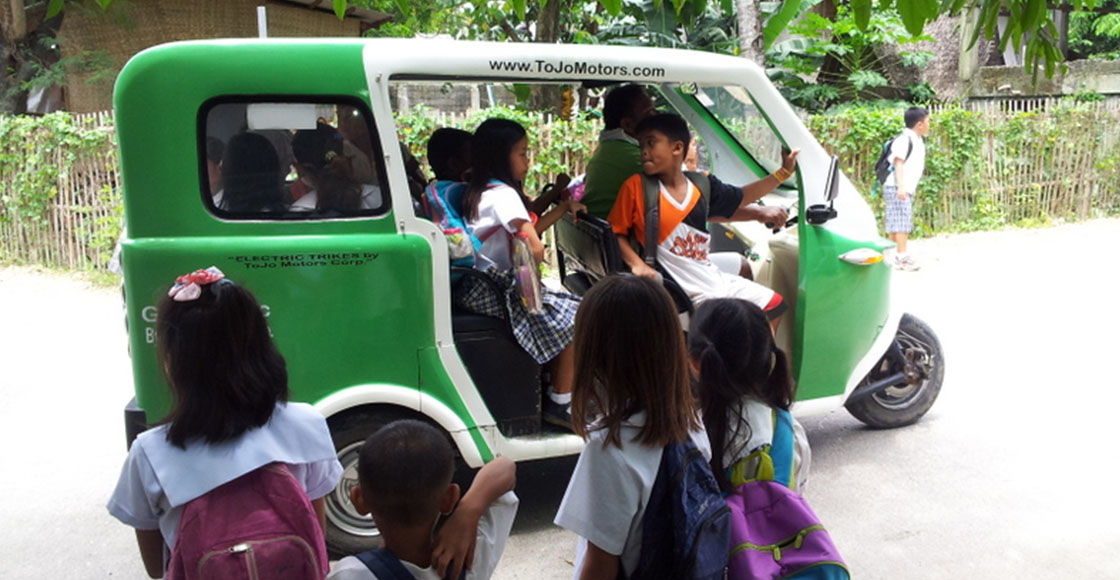

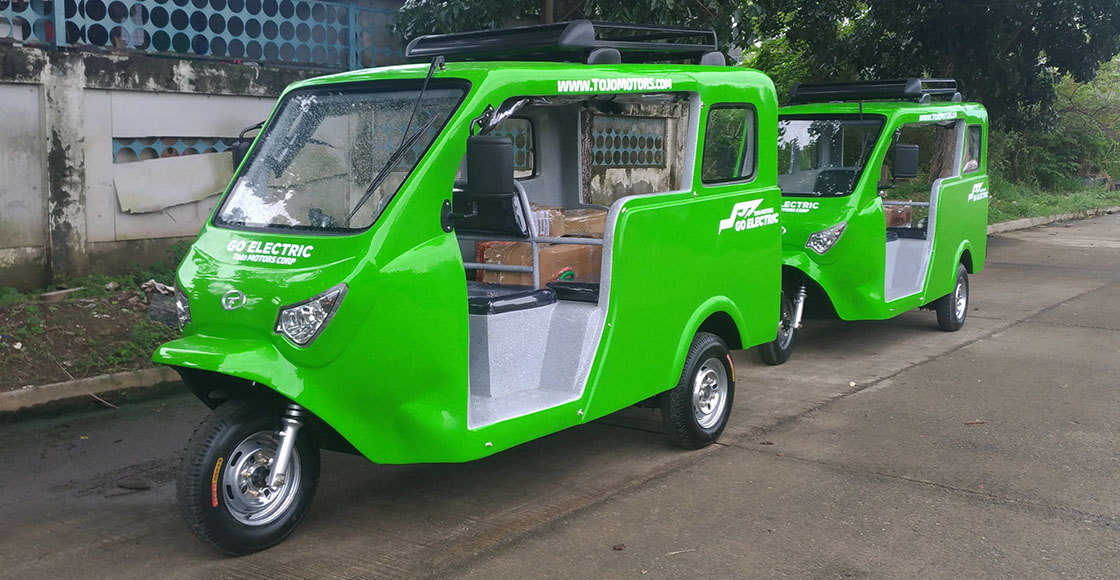

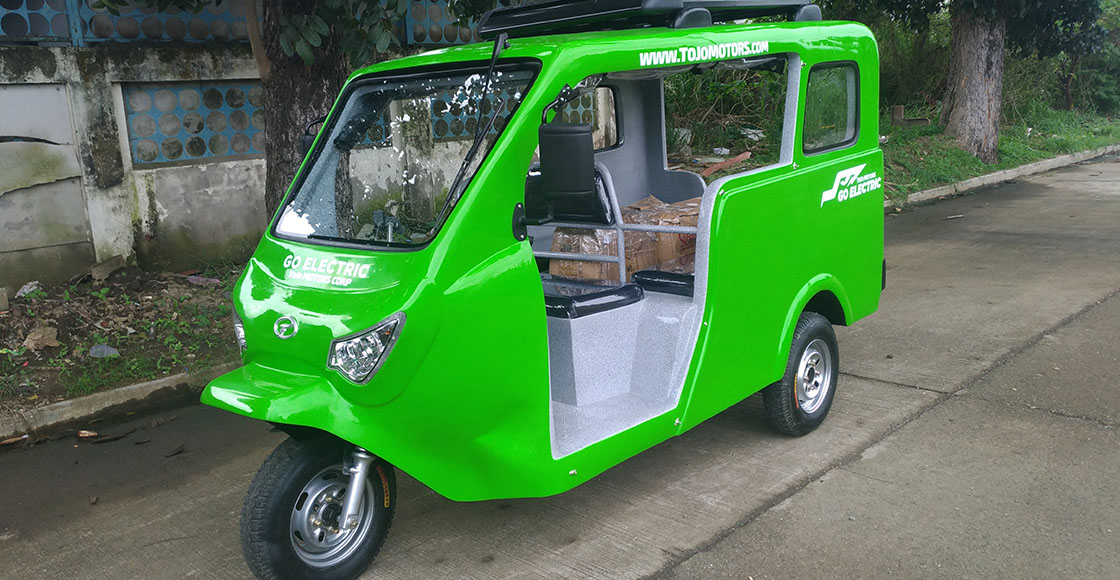

LAWIN 1

Your Livelihood Partner

The Lawin 1 will work as your choice for livelihood, especially in the tourist areas. This vehicle is specially designed for the terrain of Boracay Island and has been one of the best choices for local public transport unit since 2014.


9 PAX CAPACITY
(All Seating, Perimeter)


5KW AC Induction Motor / Lithium Battery-Powered


Built for passenger and cargo transport

GALLERY

FEATURES AND SPECIFICATIONS

FEATURE 1

This is a placeholder text sample. Please delete once correct copy is available.

FEATURE 2

This is a placeholder text sample. Please delete once correct copy is available.

FEATURE 3

This is a placeholder text sample. Please delete once correct copy is available.

CATEGORYSPECIFICATIONS
Powertrain System5 KW AC Induction Motor
Direct drive single-speed transmission axle
Performance50KPH top speed
8° climb angle
40 kms minimum range; scalable to longer range
520 kg total load capacity
BatteryLithium battery (locally assembled)
5 KwH battery pack system
Body and Chassis3170 mm x 1470 mm x 1850 mm (L x W x H)
FRP and ABS composite body panels
Ladder-type steel chassis with roll-cage frame design
Suspension and BrakesFront disc brake
Rear leaf spring system with shocks absorbers
Tyres12/500 R12
4J x 12
Passenger Capacity8 passengers seated + 1 driver

REQUEST FOR QUOTATION
